Gravel Stabilizer Grid: Transforming Unstable Gravel Areas

What Is a Gravel Stabilizer Grid and How It Works

Defining the Gravel Stabilizer Grid: Structure and Purpose

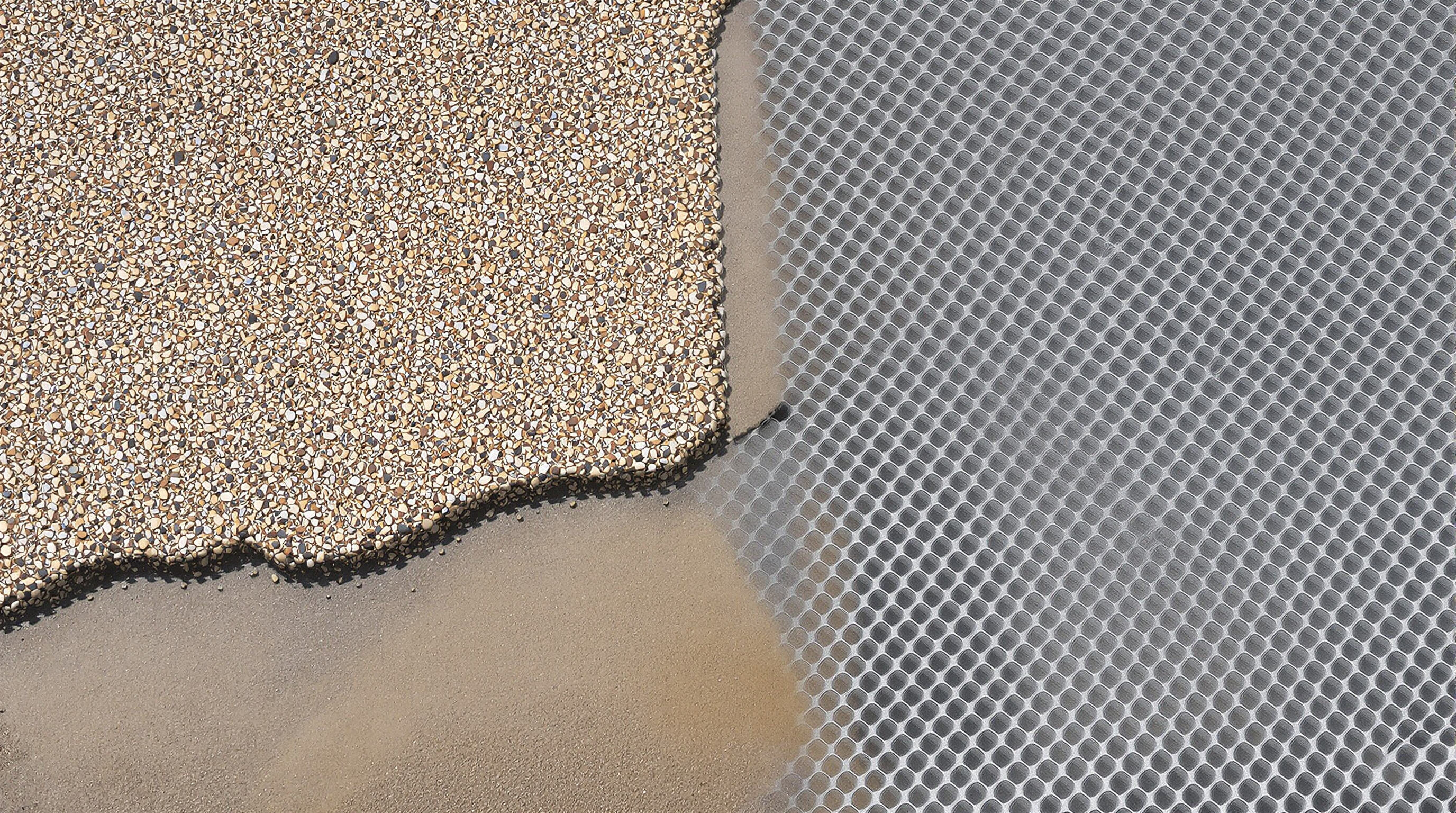

Gravel stabilizer grids work like those hexagonal plastic mats we see on driveways and parking areas. They're basically interconnected cells that hold down loose gravel without blocking water flow through the surface. Most are constructed from HDPE plastic, which makes them tough enough to withstand regular wear and tear. These grids stop gravel from shifting around when cars drive over them, people walk across, or rain washes away the top layer. When aggregate stays put inside each cell, it cuts down on those annoying ruts that form after heavy use and saves time spent fixing damaged surfaces. Contractors love using them for turning ordinary gravel patches into something that can actually support vehicles and equipment without falling apart.

The Science Behind Gravel Stabilization: Load Distribution and Confinement

Gravel stabilizer grids work so well because they spread out the weight over a larger area. Imagine a truck driving over regular gravel versus one on these grids. The grid's cells actually push the force sideways when something heavy rolls over them, which cuts down on how much pressure gets put directly onto the ground below. Tests show this can cut ground pressure almost in half compared to just loose gravel sitting there. What makes this important? It stops the gravel from moving around when stressed, keeping everything stable. Plus, since these grids have gaps between the cells, rainwater drains away instead of pooling underneath. This helps prevent water buildup that would otherwise soften the soil beneath and cause problems for anyone trying to drive or walk through the area.

Real-World Applications: Where Gravel Stabilizer Grids Excel

• Residential driveways: Eliminate rutting from cars while maintaining a natural aesthetic.
• Parking areas: Support heavy vehicles without gravel migration.
• Pathways and public spaces: Ensure ADA-compliant, slip-resistant surfaces.
• Erosion-prone slopes: Stabilize soil while allowing vegetation to grow through cells.

These grids are particularly valuable in Sustainable Drainage Systems (SuDS), where their permeability aids stormwater management and compliance with environmental regulations.

Problems with Traditional Gravel Surfaces and the Need for Stabilization

Common Issues: Gravel Displacement, Erosion, and High Maintenance

Gravel paths have always had their issues. The main problems? Gravel moving around when cars drive over it, getting worn down by rain, and all the work needed to keep them looking good. When vehicles pass regularly, the stones just shift position, making those annoying dips and bumps nobody wants on their property. After heavy rains, things get even worse as water carries off bits of gravel, leaving behind soft dirt underneath. Homeowners end up spending quite a bit of time each year fixing these problems. Some studies show folks might spend anywhere from six to eight hours working on a hundred square meters worth of gravel surface annually. That kind of maintenance adds up fast, yet many people forget about this ongoing expense when they first decide to install gravel pathways.

Why Ground Stabilization Is Essential for Long-Term Performance

When we talk about stabilization, what we're really looking at is keeping gravel from shifting around using something called cellular confinement. Basically, this reinforcement stops gravel from moving sideways even when trucks drive over it, but still lets water drain naturally through the surface. Some tests done in geotech labs have found that these grids can cut down on surface movement by about 85% compared to regular old loose gravel. What does this mean in practice? Surfaces stay intact for over a decade with hardly any maintenance needed. That makes all the difference for places where people constantly walk or drive, like residential driveways or busy commercial pathways where regular repairs would be a pain.

Cost-Effectiveness Revisited: Are Loose Gravel Surfaces Sustainable?

Loose gravel might seem cheaper at first glance (around $2 to $4 per square meter), but when looking at the big picture, it actually ends up costing much more in the long run. Surfaces without stabilization need roughly 30 to 40 percent extra gravel replaced every ten years, not to mention all the time spent on regular maintenance work. That's where stabilizer grids come into play. These grids cut out those repeated expenses completely, and they last for decades in most situations. Some field tests show that using stabilized systems can pay for themselves within just three to five years because there's so much less wasted material and fewer hours spent on repairs. The math just adds up better over time with this approach.

How Gravel Stabilizer Grids Control Erosion and Improve Drainage

Preventing Gravel Displacement and Soil Erosion Through Structural Confinement

Gravel grids work wonders against erosion because they hold those loose stones together in these hexagonal shapes that look kind of like honeycombs. When people walk over them or vehicles drive across, the stones stay put instead of shifting around all the time. Research has found these grid systems cut down on surface movement by something like 92 percent when compared to regular old gravel paths according to some study published last year in the Geotechnical Engineering Journal. Plus, those connected cell structures protect what's underneath from getting washed away during heavy rains. This protection really matters for keeping trails and roads intact after storms hit hard.

Integrated Drainage Benefits and SuDS Compliance

The grids actually go beyond what Sustainable Drainage Systems (SuDS) require because they handle both erosion problems and manage water naturally at the same time. What makes them stand out is this amazing 95 percent permeability rate, which beats regular asphalt by three times over. Yet despite all that water passing through, the surfaces stay stable even when it rains heavily for days on end. The best part? They stop those annoying puddles from forming around construction sites while still letting developers comply with all those tough environmental rules. And guess what? The materials hold up just fine too, so there's no need to worry about replacing them anytime soon.

Drainage Efficiency: How Gravel Grids Enhance Water Management

Three critical advantages optimize drainage:

• Rapid infiltration: 450+ liters/m²/hour flow capacity
• Runoff reduction: 65% decrease compared to compacted gravel (Water Management Association, 2022)
• Filtration: Built-in geotextile layers prevent soil contamination

Case Study: Reducing Erosion in Residential Driveways with Geocell Technology

A 12-month trial with 50 UK homeowners using geocell-style grids demonstrated:

The cellular confinement system maintained surface integrity even with daily vehicle use, proving effective for residential applications requiring both aesthetics and functionality.

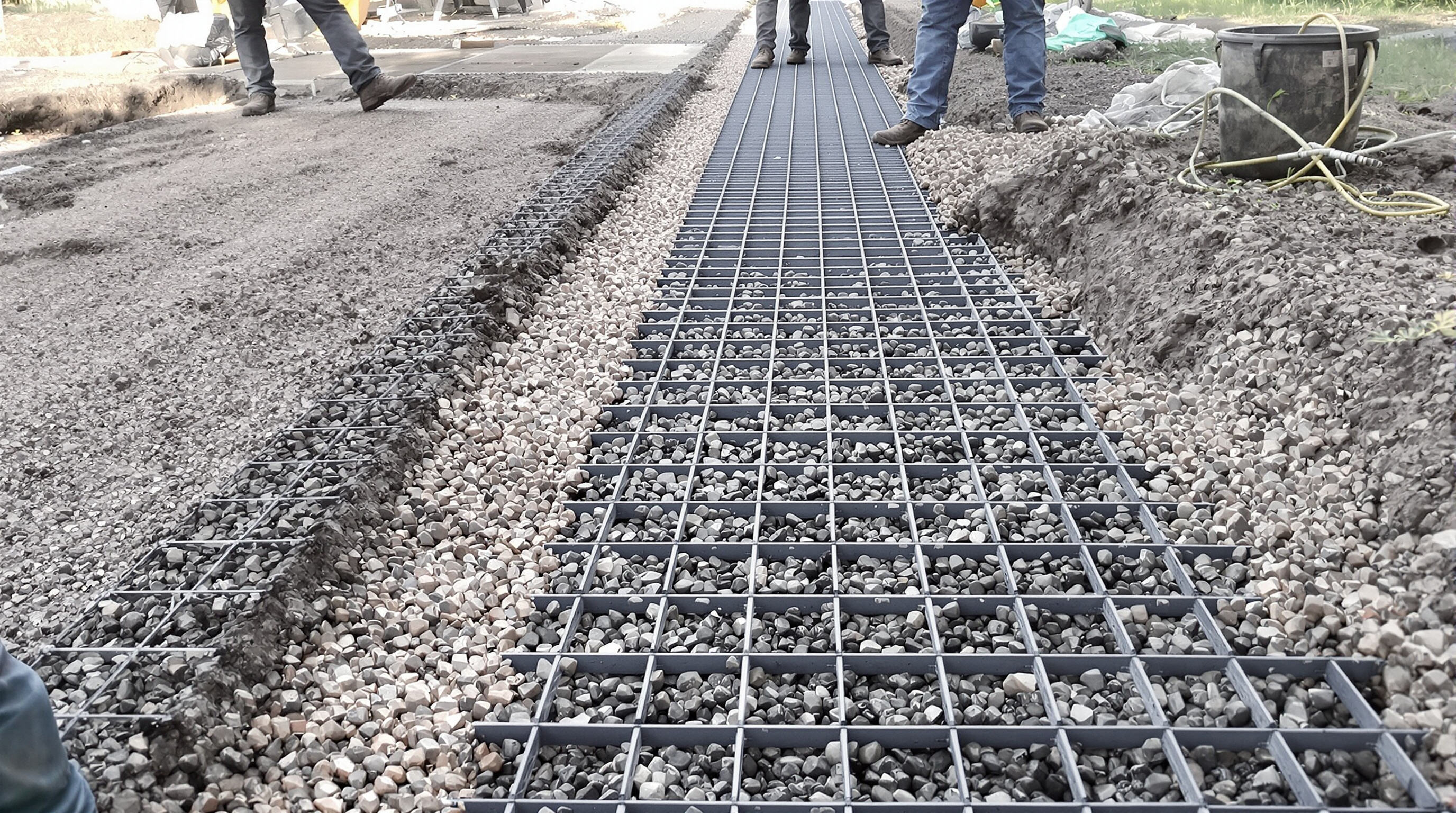

Installation Process: From Site Preparation to Final Gravel Fill

Ground Preparation: Ensuring Base Stability and Proper Soil Assessment

Getting ready for gravel stabilizer grid installation starts with proper groundwork. First things first, get rid of all plants, trash, and any organic stuff lying around the site. Take a good look at what kind of soil we're dealing with here. Sandy soils often need some extra support with geotextiles, whereas those heavy clay soils usually work better when we add extra drainage somewhere below. Compact the ground underneath until it reaches about 95% of standard compaction levels so there's solid foundation beneath everything. And watch out for slopes too steep than 5 degrees or so because that can mess up how the grids line up properly during installation.

The Role of Geotextile Fabric in Separation and Reinforcement

Geotextile fabric acts as a critical separator between the subgrade and gravel layer, preventing soil contamination while enhancing load distribution. Heavy-duty woven polypropylene variants (≥200gsm) are preferred for high-traffic areas like driveways. Properly lapped seams with a minimum 300mm overlap ensure uninterrupted soil stabilization and erosion control.

Step-by-Step Guide to Installing Gravel Stabilisation Grids

1. Grid Layout: Interlock modular grids in a brickwork pattern, trimming edges with a utility knife for irregular shapes.
2. Anchoring: Secure perimeter grids with ground pegs every 0.5m on sloped terrain.
3. Gravel Fill: Use angular 10–20mm crushed stone, filling cells 5mm above grid height to accommodate settling.
4. Compaction: Lightly compact the surface with a vibrating plate compactor (no more than three passes) to lock gravel in place.

DIY Installation: Is It Feasible and What Are the Best Practices?

Do it yourself installations work pretty well for smaller homes that are less than 50 square meters and have flat ground. When tackling such projects, there are a few things worth remembering. First off, getting those grades right really matters, so invest in a good laser level. Most folks find they need around 10 to 15 percent more gravel than initially calculated because compaction always takes away some volume. And watch out for over-compacting the area too much since this can actually warp the grid system itself. Things get trickier when dealing with bigger properties or places where heavy vehicles regularly pass through, say anything carrying over 3.5 tons. That's when calling in professionals becomes necessary. They handle all the complex math behind load capacities, typically working with grids rated at least 50 kilonewtons per square meter. Plus they make sure everything meets Sustainable Urban Drainage Systems standards from the start rather than trying to retrofit later on.

Durability, Load Capacity, and Long-Term Maintenance Benefits

Long-Term Performance: Durability and Reduced Maintenance Needs

Gravel grids constructed from HDPE plastic or even recycled materials can last decades despite harsh conditions like sunlight, extreme temperatures changes, and contact with chemicals. According to recent research published last year by landscape architects, these grid systems cut down on maintenance work needed for gravel surfaces by around two-thirds when compared to regular loose gravel areas. No more constant regrading or fixing spots where the gravel has shifted away. The design works differently than standard surfaces too. Those interlocking cell structures stop ruts from forming but still let water drain through naturally. This helps prevent those nasty problems with frozen ground expansion that plague many regions during winter months.

Vehicle Load Capacity and Grid Resilience: Answering Common Questions

Gravel stabilizer grids today can handle loads over 50 tons per square meter, which makes these systems work great for things like fire trucks, RVs, and those big industrial vehicles we see around construction sites. The cellular confinement design spreads out the weight much better than traditional methods, cutting down soil pressure by roughly 70 percent according to a recent study from geotechnical engineers back in 2023. When looking at actual field results, most installations keep about 95% of their original gravel fill even after being used heavily for five whole years. That's pretty impressive when compared to regular driveways without stabilization that typically lose around 60% of their gravel content during the same timeframe.

Industry Trend: The Shift Toward Permanent, Low-Maintenance Gravel Solutions

More cities and developers are turning to gravel stabilizer grids for their parking lots and walkways these days. According to recent data from civil infrastructure reports, this trend has been picking up steam at about 35% per year since 2020. What makes these systems so appealing? Well, they actually fit pretty well with circular economy ideas too. Around 85% of the commercial grids on the market today incorporate recycled materials, which is pretty impressive. Plus, many companies now offer those long-term 30-year warranties as standard. The real kicker though is how these grids handle both weight distribution and stormwater runoff. This dual functionality has led many professionals to view them not just as temporary fixes but as lasting surface solutions for various applications.

FAQ

What are gravel stabilizer grids made of?

Gravel stabilizer grids are mostly made from high-density polyethylene (HDPE) plastic, ensuring they are strong and durable enough to endure regular wear and tear.

Can gravel stabilizer grids be used for heavy vehicles?

Yes, gravel stabilizer grids can support loads over 50 tons per square meter, making them suitable for fire trucks, RVs, and industrial vehicles.

How do gravel stabilizer grids help with erosion and drainage?

These grids confine gravel within hexagonal cells, preventing displacement and soil erosion while maintaining exceptional permeability to improve water management.

Is DIY installation of gravel stabilizer grids possible?

DIY installation is feasible for small areas with flat ground, but professional assistance is advised for larger or high-traffic zones.
